Williams Road Roundabout

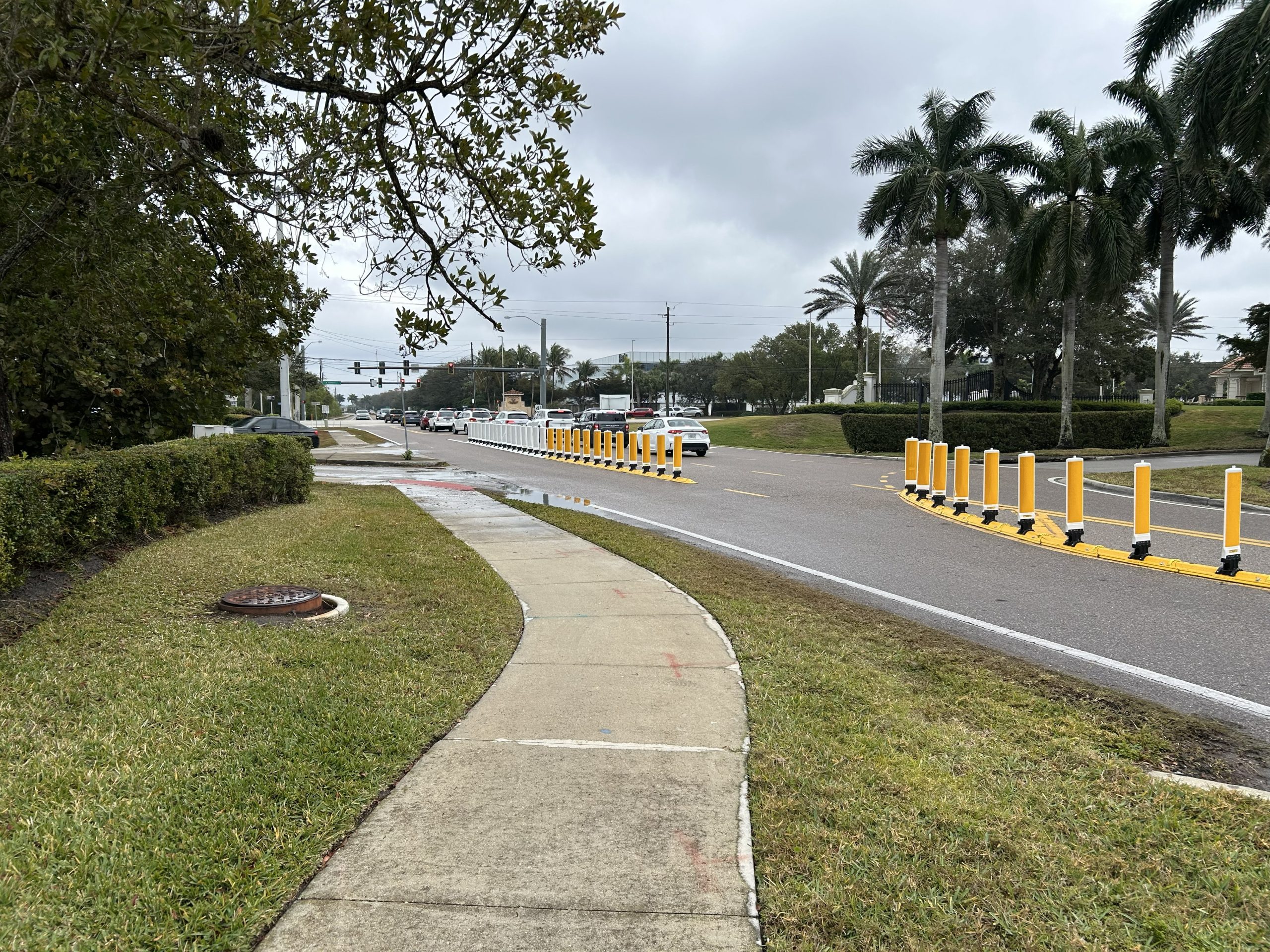

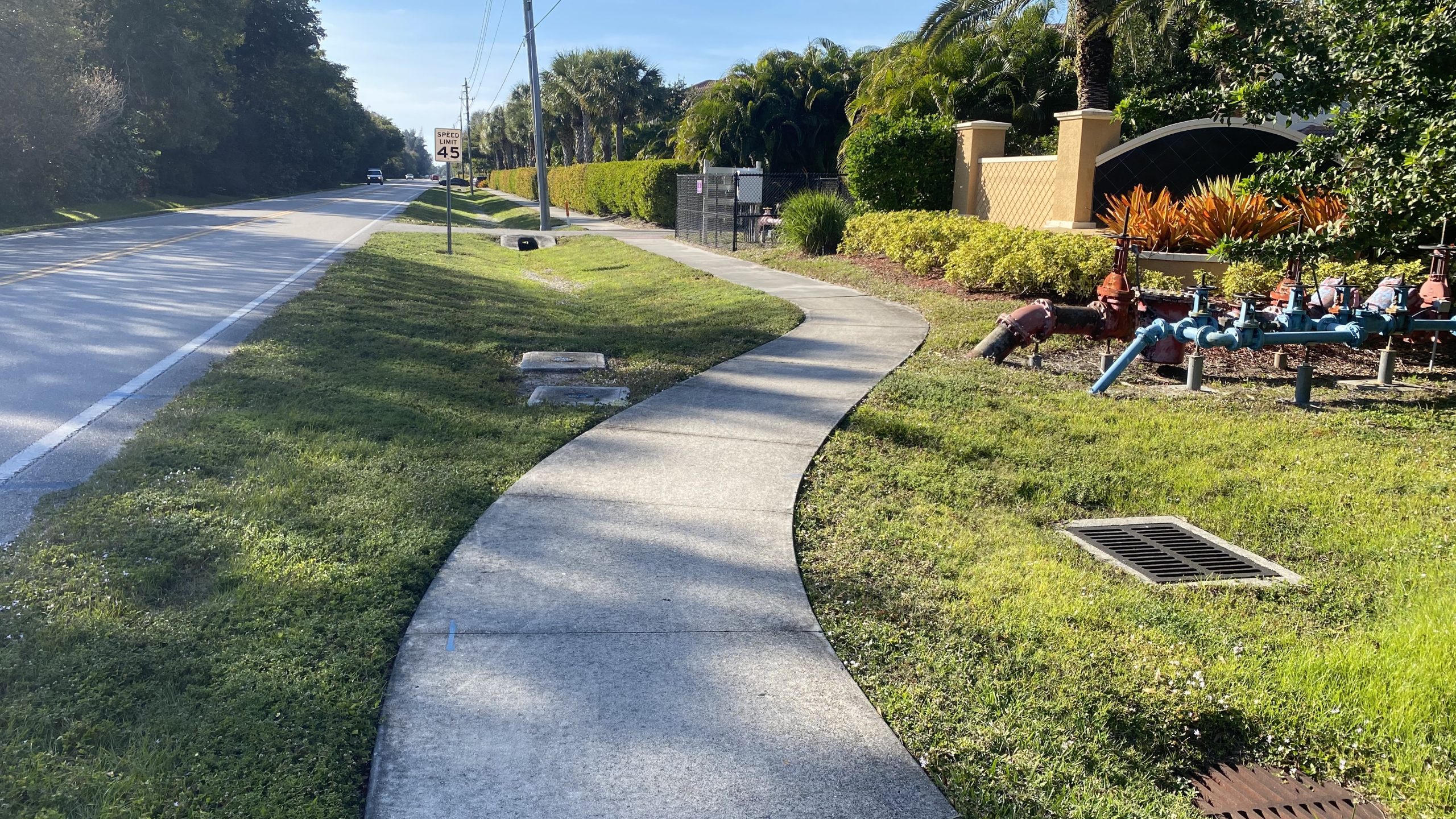

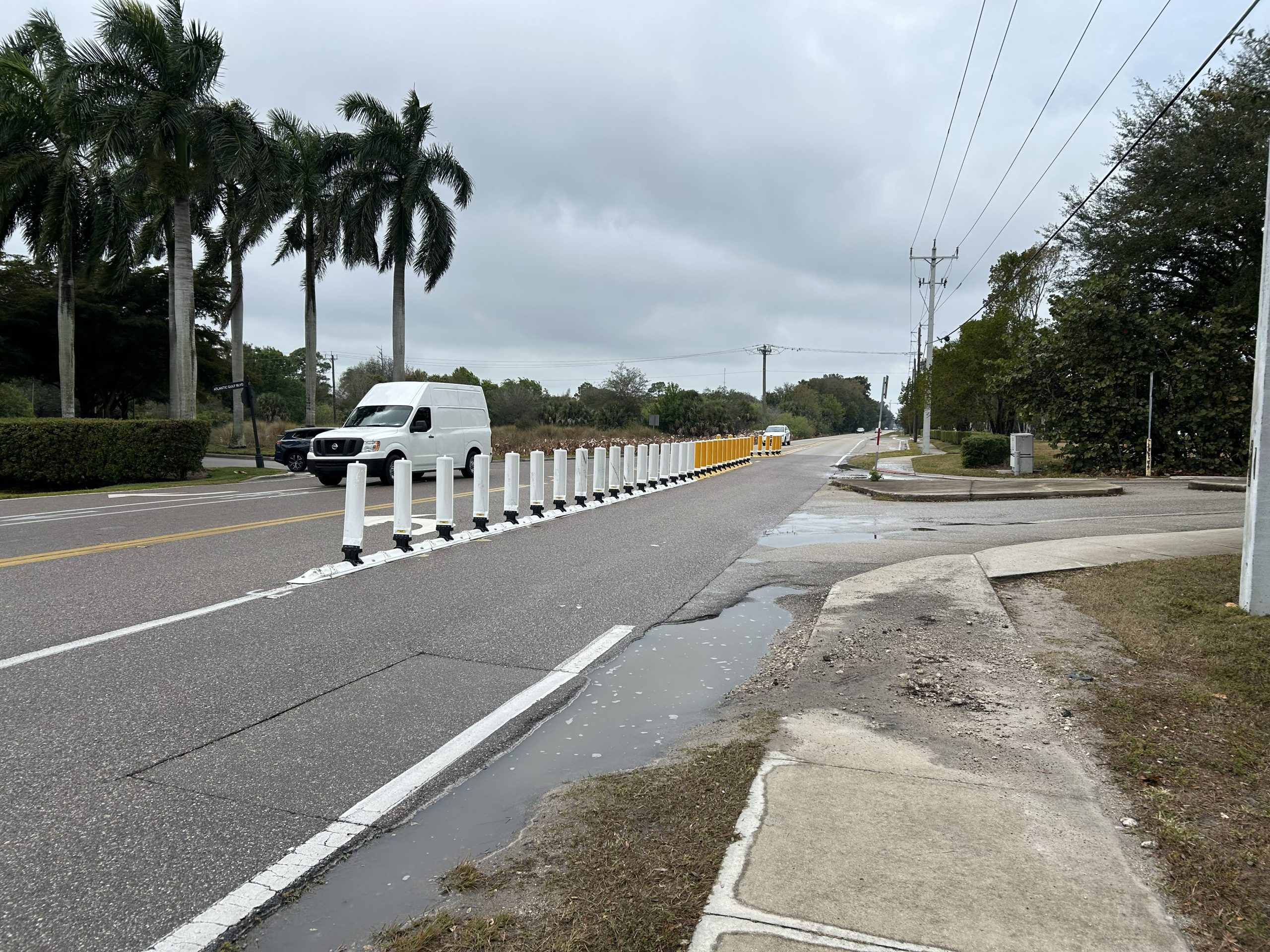

KCA was selected by the Village of Estero to provide design and permitting services for the roadway and intersection improvements along Williams Road at Atlantic Gulf Boulevard directly west of US 41 in the Village of Estero, Florida. This project includes traffic analysis and design of a single-lane roundabout at the intersection of Williams Road at the entrance to a commercial/medical development to restrict illegal turning movements, enhance safety, increase turn lane storage at US 41, and provide a complete street design. The improvements included both new construction and milling and resurfacing to accommodate the addition of sidewalk and bicycle facilities, corridor lighting, landscape, curb and gutter, drainage infrastructure, and new signing and pavement markings. Right-of-way analysis and cost-to-cure services were also necessary for impacts outside the constrained 60’ right-of-way.

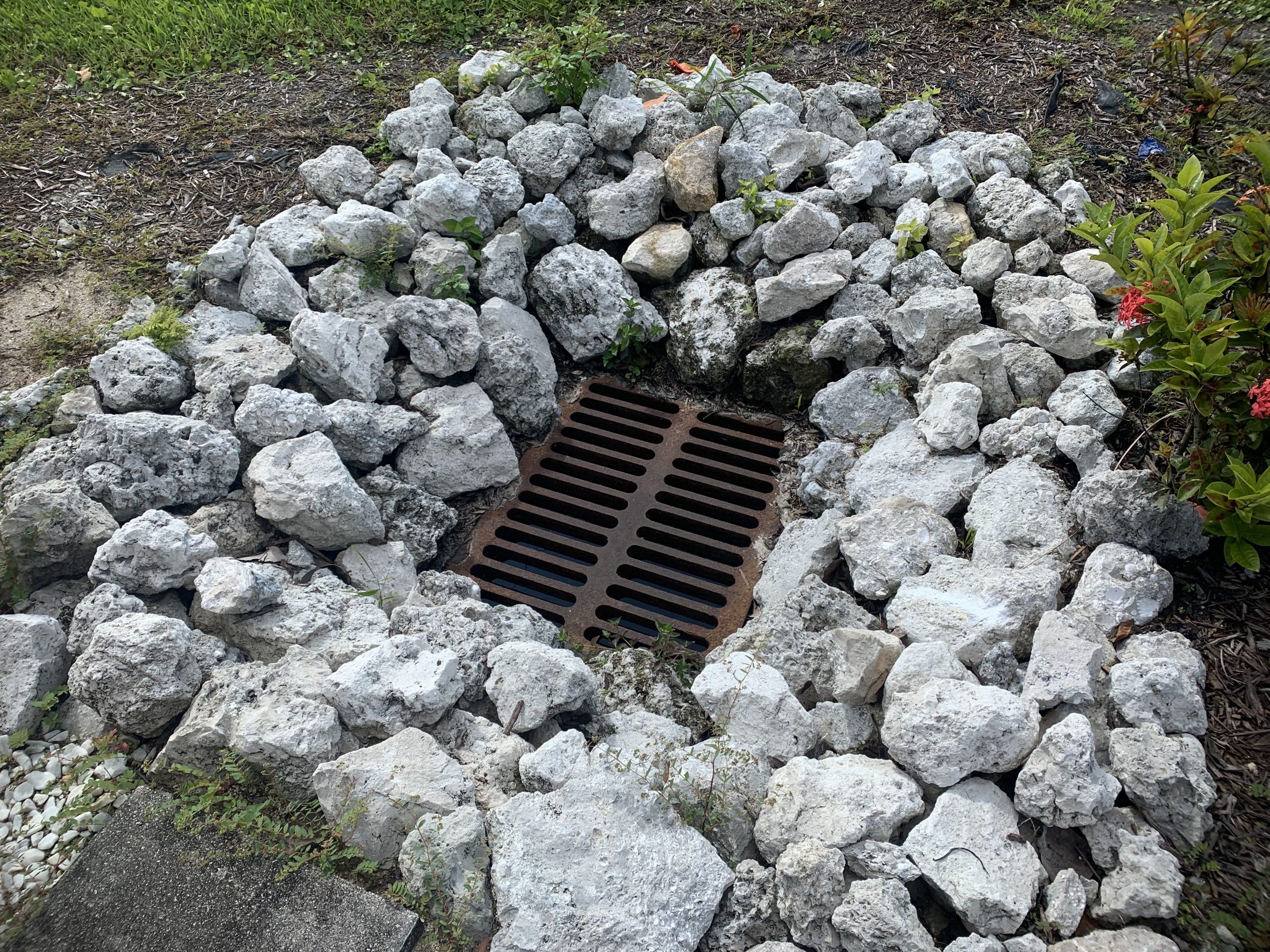

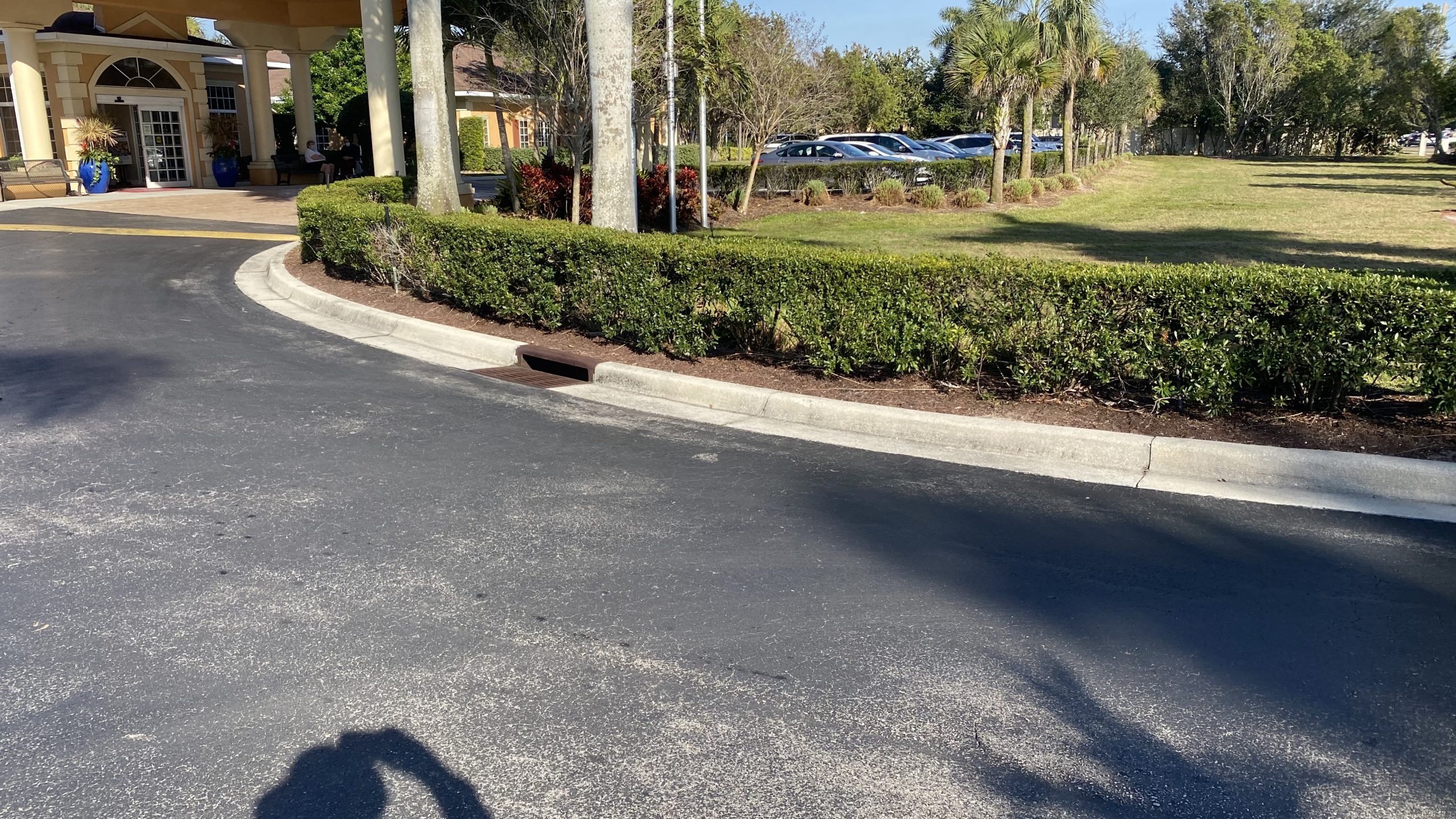

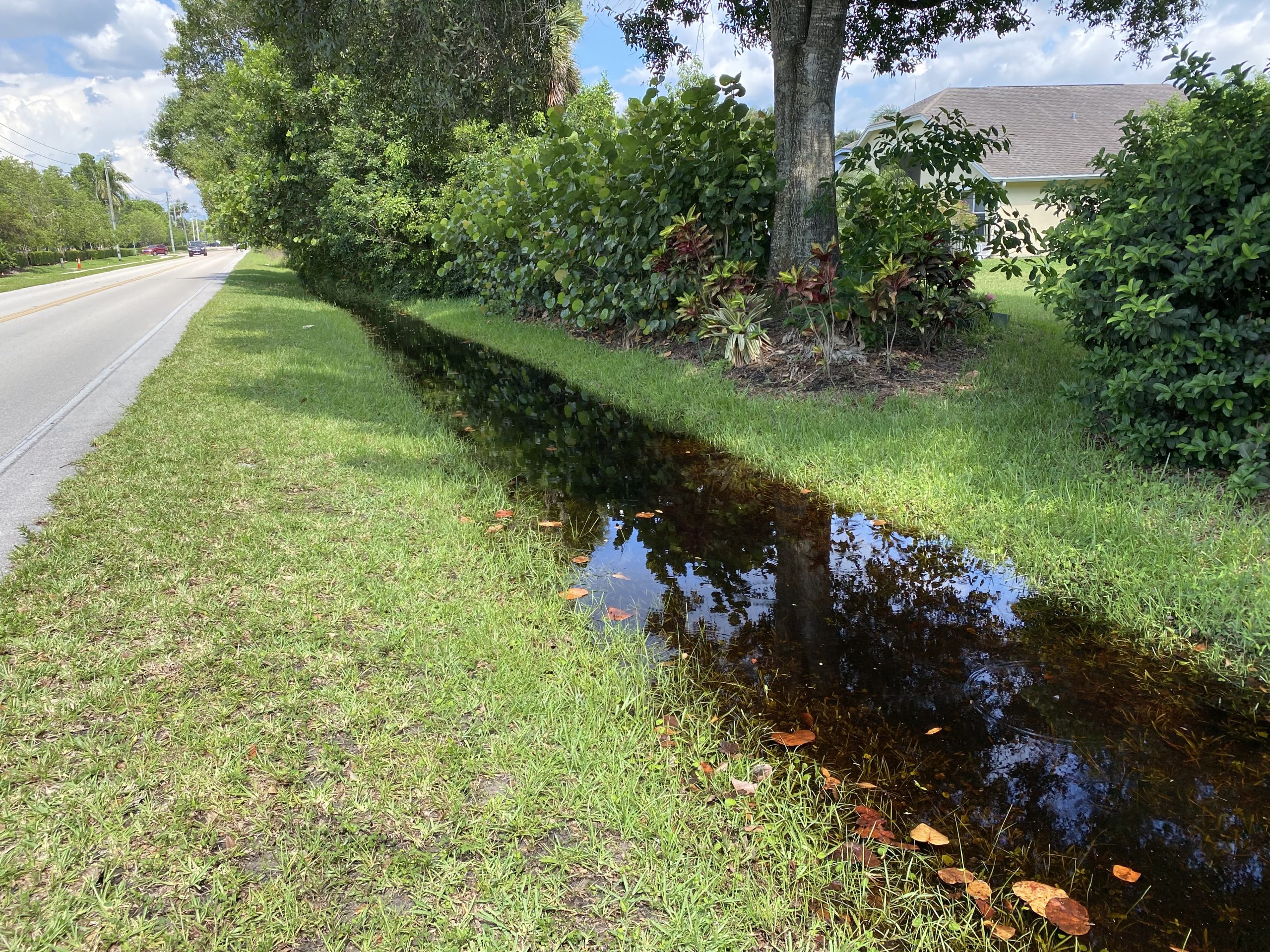

The improvements include a new two-lane roadway section facility with curb and gutter with 11-15′ wide travel lanes. In addition, a 4′ wide bike lane and a 8′ wide concrete sidewalk. This project also includes stormwater improvements such as stormwater runoff on the southern side of the road that will be conveyed to the existing storm sewer system. Stormwater runoff on the northern side of the road will be conveyed to the existing storm sewer system via curb inlets.
